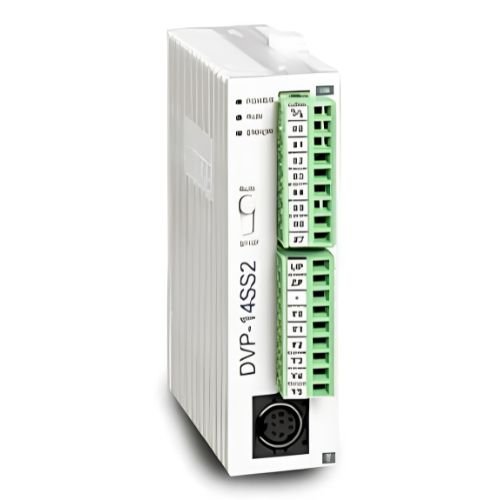

DVP SS2 Series Delta PLC

The DVP SS2 Series Delta PLC is a second-generation programmable logic controller designed for reliable sequential control, industrial automation and machine control applications.

Building on the basic sequential control functions of the DVP-SS series, the DVP-SS2 delivers faster execution speed and enhanced real-time monitoring capabilities for modern automation systems.

The DVP 14SS2 provides 14 MPU points, including 8 digital inputs and 6 digital outputs, with support for up to 494 I/O points. It also offers an 8K-step program capacity for automation applications.

Built-in RS-232 and RS-485 communication ports support Modbus ASCII/RTU protocol and allow the PLC to operate as either a master or slave. Four independent high-speed pulse outputs provide control at up to 10kHz.

10kHz Pulse Output Four independent high-speed pulse outputs

PID Auto-Tuning Automatic parameter saving after PID temperature tuning

RS-232 & RS-485 Modbus ASCII/RTU compatible communication

Enquire Now →

PRODUCT DETAILS

Technical Specifications

Specifications of the DVP SS2 Series Delta PLC.

Model Series	SS2
Output Type	Digital
Communication Interface	RS 232
Brand	Delta
Usage / Application	PLC
Number of Inputs	8 Inputs
Model	DVP 14SS2
Minimum Order Quantity	10 Piece

CONNECTIVITY

Communication & Control Functions

Built-in communication and high-speed control functions support flexible industrial automation integration.

Communication Ports	Built-in RS-232 & RS-485
Communication Protocol	Modbus ASCII / RTU
Communication Mode	Master or Slave
High-Speed Pulse Output	4 Points – Y0 to Y3
Maximum Pulse Frequency	10kHz
PID Auto-Tuning	Supported
High-Speed Counters	Built-in

INDUSTRIAL USE

Suitable Automation Applications

The DVP SS2 combines sequential control with high-speed outputs and communication functions for diverse machinery.

Application 01	Spinning Machine
Application 02	Conveyor Belt – Rotation Speed Control
Application 03	Winding Machine – Tension Control
