440V LT Distribution Panel
440V LT Distribution Panel

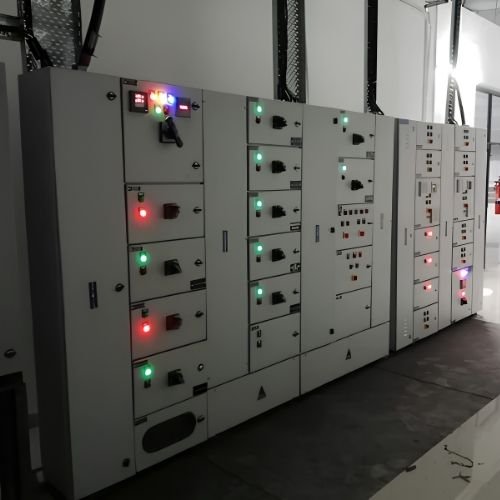

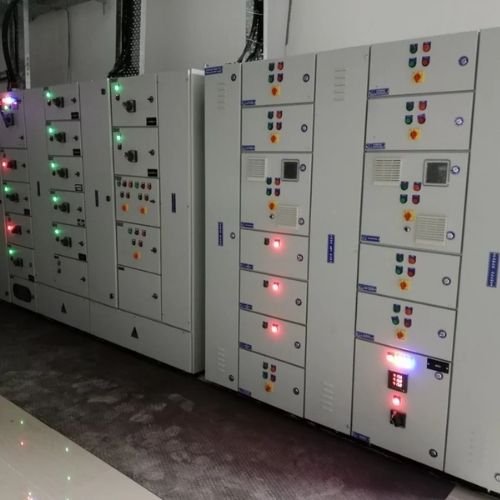

The 440V LT Distribution Panel from Shri Shyam Engineers is an automatic low-tension electrical distribution solution designed for reliable power distribution and motor control in industrial installations.
Manufactured with a robust mild steel enclosure and powder-coated finish, the panel is designed to provide dependable performance and protection for electrical equipment in demanding industrial environments.
This LT panel is configured with 15 starter feeders, including 2 × 25 HP star-delta starters, providing an integrated solution for controlling and distributing power to multiple industrial loads.

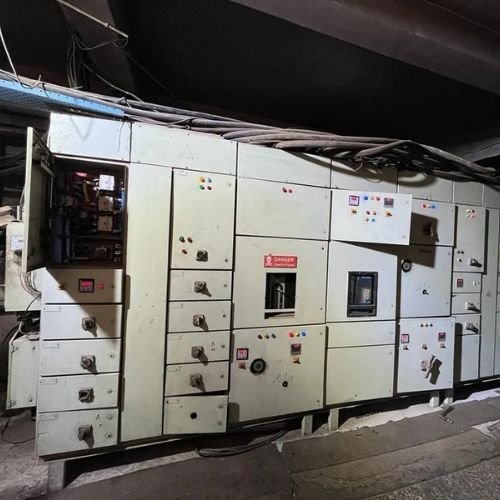

The panel has been installed for a pharma industry application in Haridwar, demonstrating its suitability for industrial power distribution and motor-control requirements.
01
440V LT Distribution
Designed for low-tension industrial power
distribution applications
02
15 Starter Feeders
Configured with multiple starter feeders
for industrial motor applications
03
2 × 25 HP Star-Delta Starters
Integrated motor starting arrangement for
specified 25 HP loads
PRODUCT DETAILS
Technical Specifications
Key specifications of the 440V LT Distribution Panel.
| Rated Voltage | 440V |
|---|---|
| Automation Grade | Automatic |
| Material | Mild Steel (MS) |
| Phase | Three Phase |
| IP Rating | IP55 |
| Current | 1500 Amp |
| Finish | Powder Coated |
| Starter Feeders | 15 Nos. |
| Star-Delta Starters | 2 Nos. × 25 HP |
| Application | Industrial Power Distribution & Motor Control |
| Minimum Order Quantity | 10 Piece |
KEY FEATURES
440V LT Panel Features
Designed for dependable power distribution and efficient industrial motor control.
01
High Current Capacity
Rated for up to 1500 Amp current distribution
applications.
02
IP55 Protection
Enclosure designed to provide protection for
internal electrical components.
03
Automatic Operation
Automatic panel configuration for industrial
distribution and control requirements.
04
Multiple Feeders
15 starter feeders provide a centralized
industrial motor-control arrangement.
PANEL CONFIGURATION
Industrial Starter & Feeder Arrangement
The panel is configured to support multiple industrial motor loads through dedicated starter feeders.
| Panel Type | LT Distribution Panel |
|---|---|
| Total Starter Feeders | 15 Nos. |
| Star-Delta Starter Quantity | 2 Nos. |
| Star-Delta Starter Rating | 25 HP Each |
| Panel Voltage | 440V |
| Panel Current | 1500 Amp |
| Phase | Three Phase |
| Finish | Powder Coated |
